HelioRack FT Root

Ideal for soft soil conditions, light handling

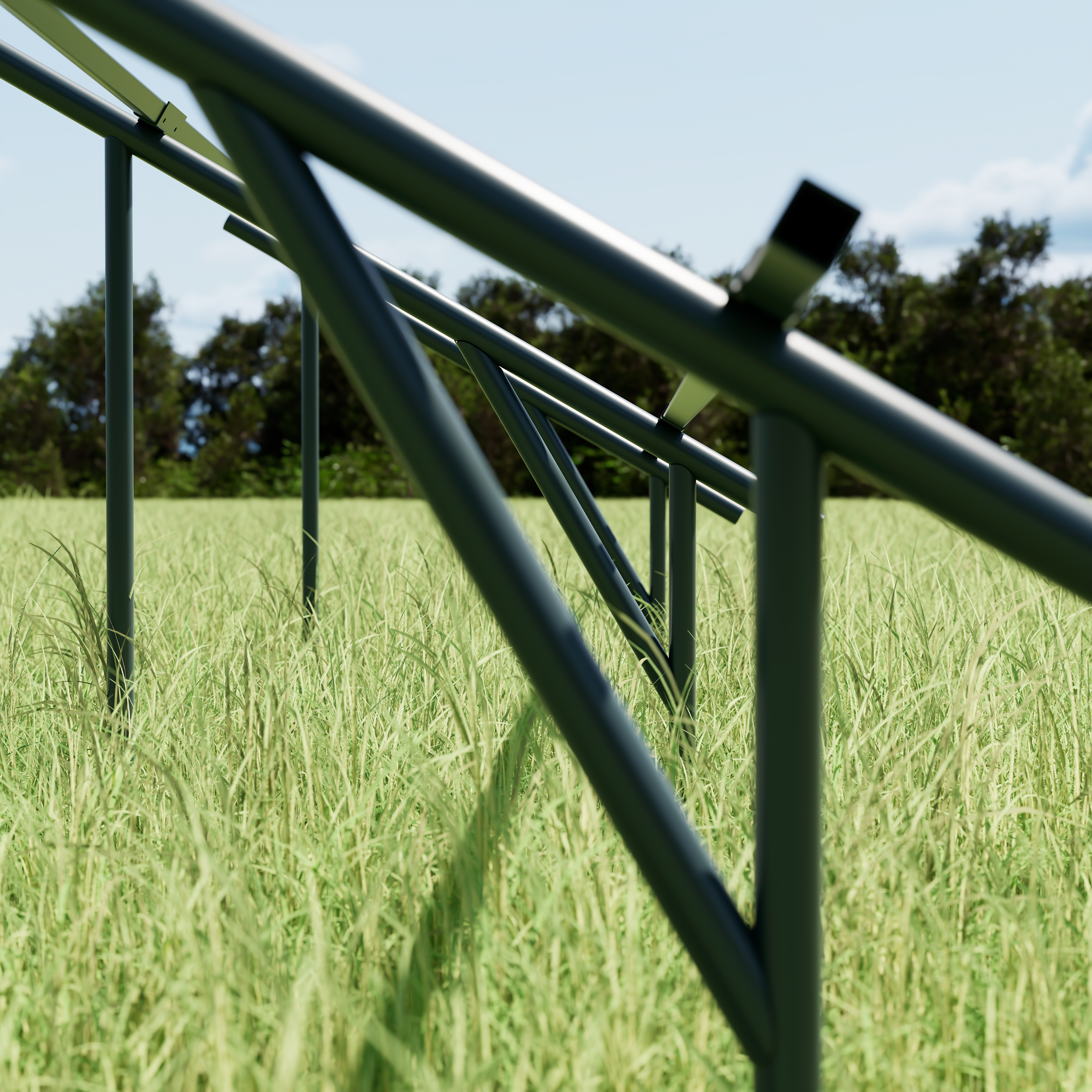

HelioRack FT Root

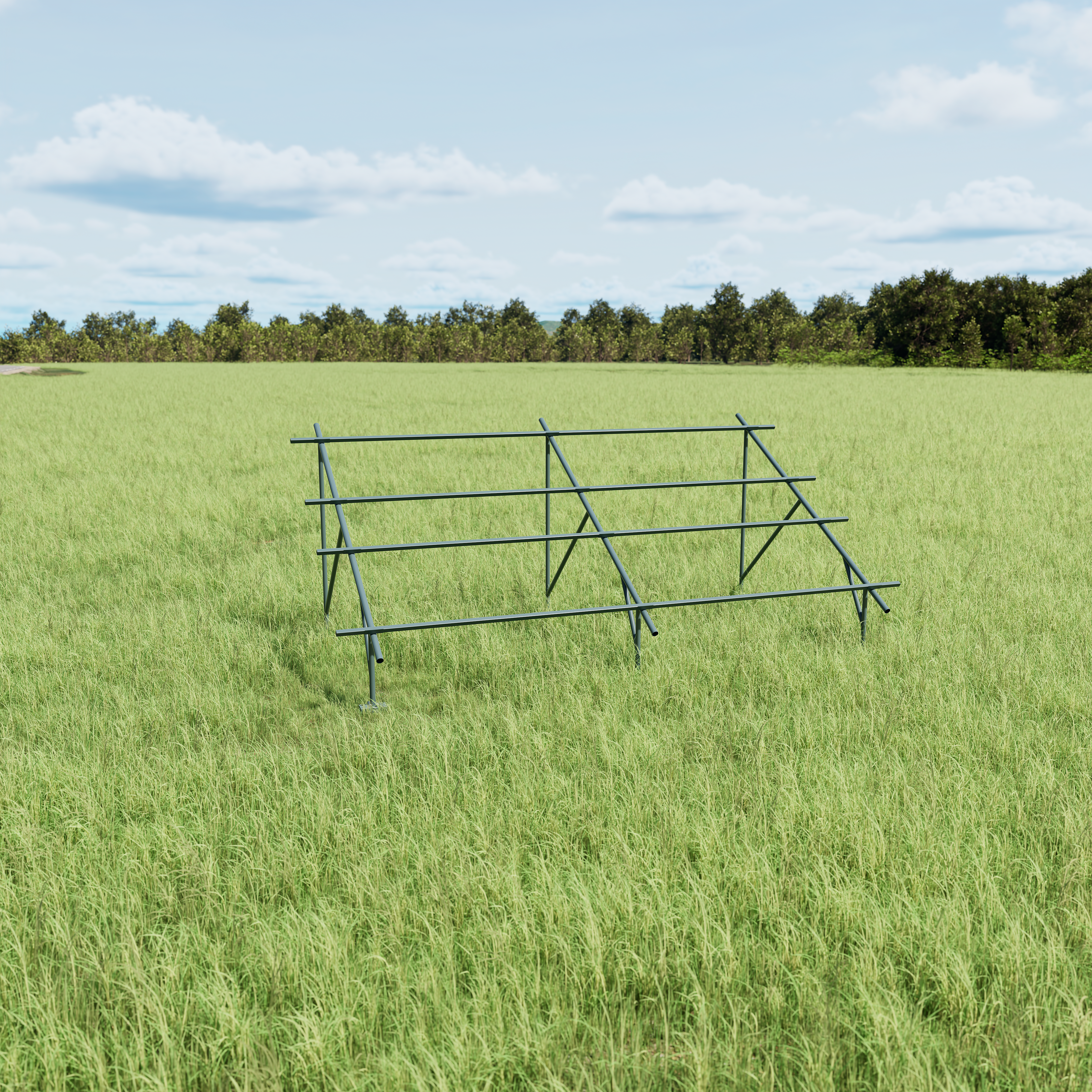

HelioRack FT Root

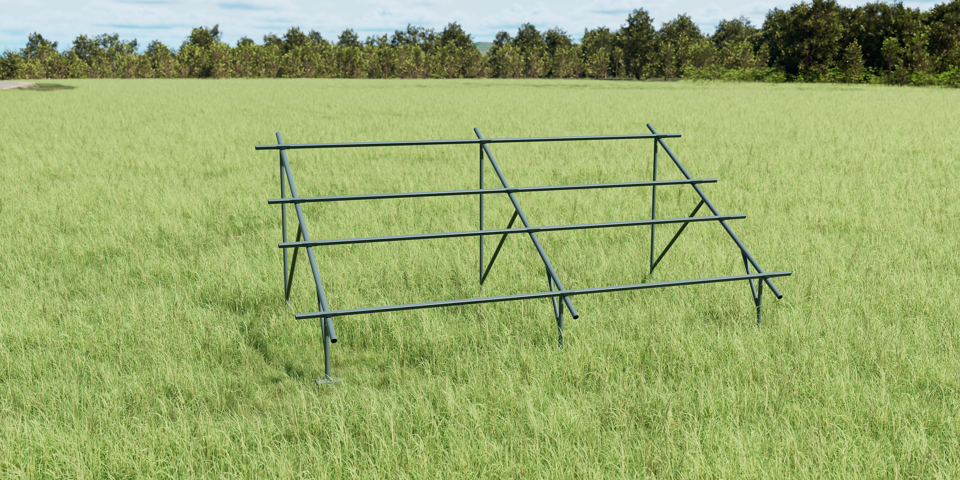

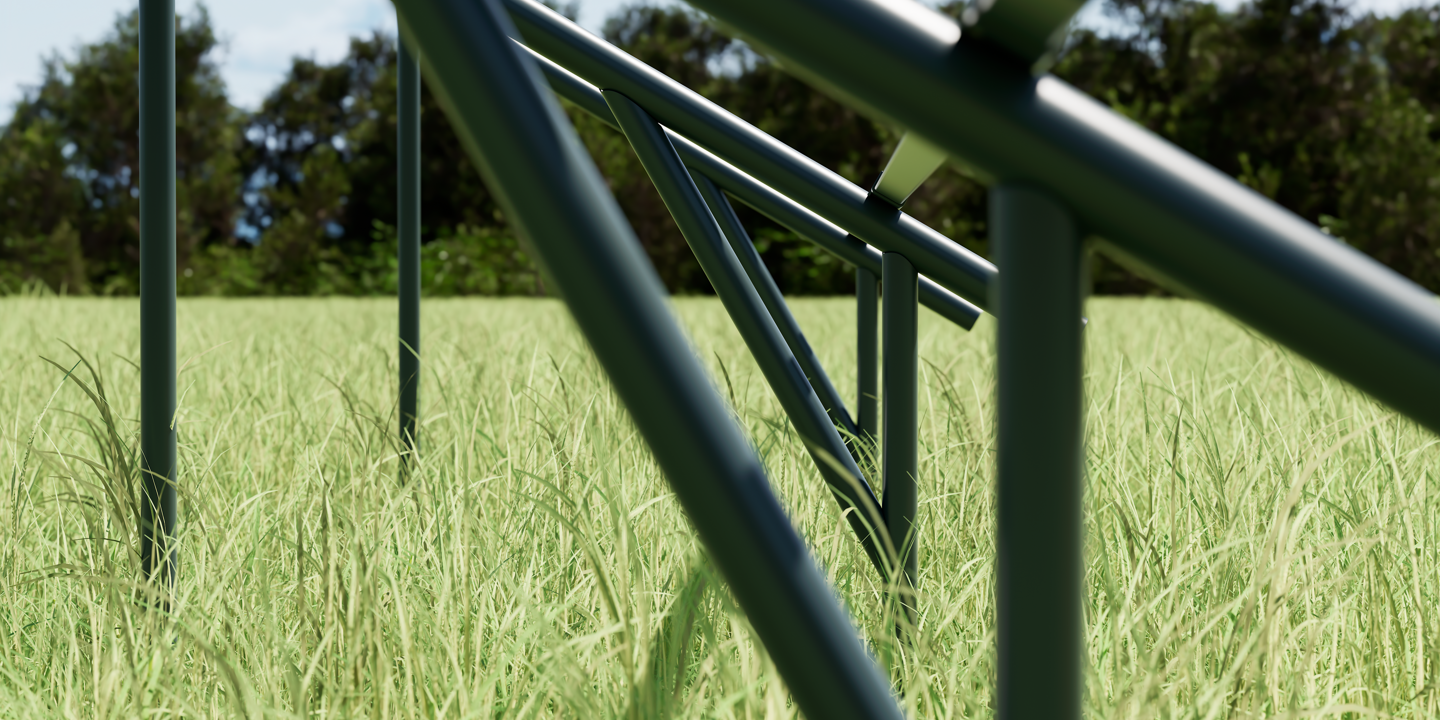

HelioRack FT Root

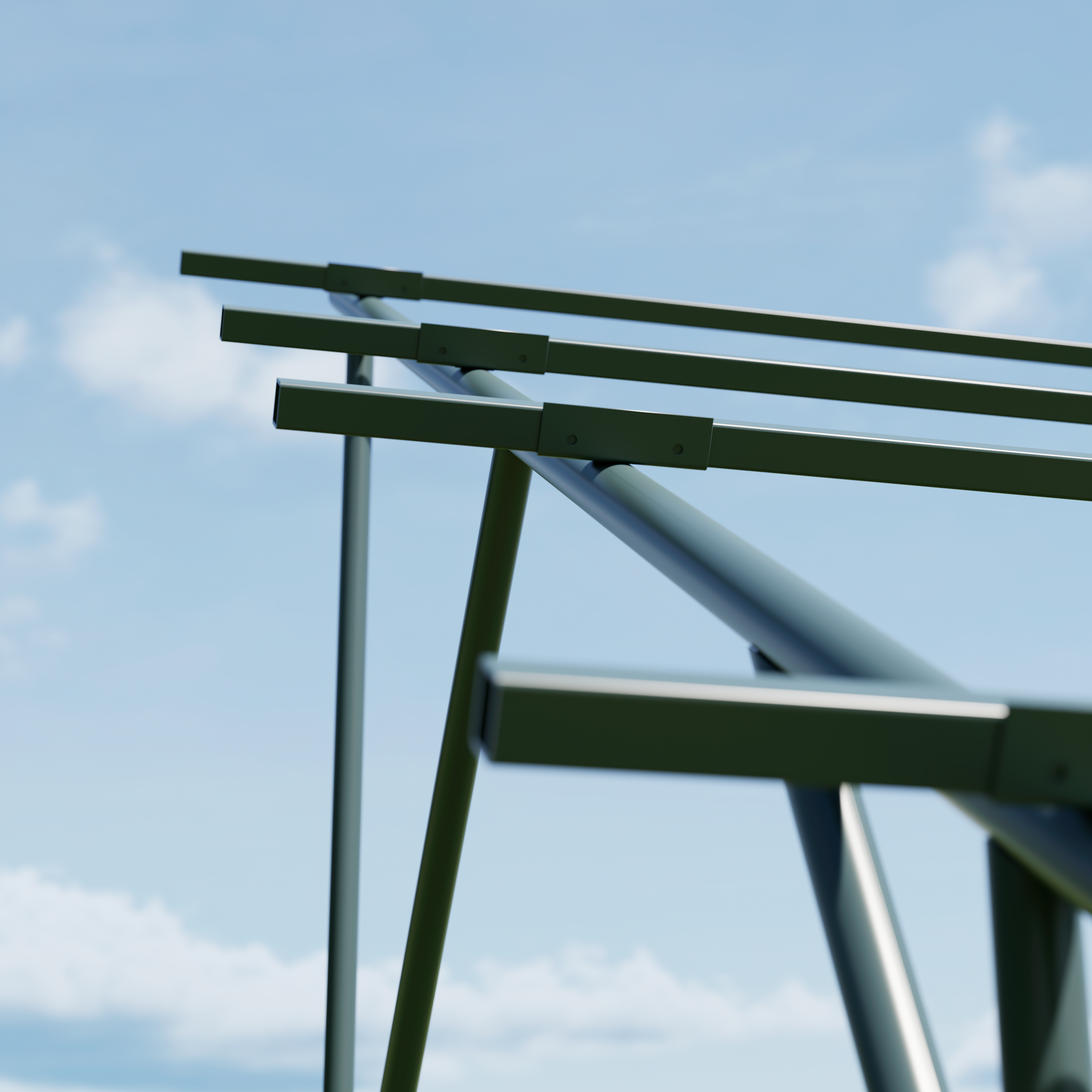

HelioRack FT Root Details

HelioRack FT Root Details

Product details

Angle of inclination 10-30° Degree
Modular Mounting Clamps
Table length 30-60 m, more on request
Distance c/c c/c 2000 - 4500 mm.
Foundation
Roots, Concrete
Materials High strength steel S355 and S450 hot
galavanized C-profile 60x40x10x2,5.
(EN 10162 in quality S450GD + Z600MA,
hot galvanized) (S450)
Warranty Standard: 25 years.
Other periods by arrangement
Bolt material Self-threading screw: HexNut M8
Snow-/Wind load zones Approved up to 4,0 kN/m² snow zone
Approved up to 26 m/s wind zone



We accompany you from the initial planning to the final installation

Individuelle Projektplanung



Individual project planning

Tailor-made solutions for everyterrain and every need.


Statische Berechnungen



Static calculations

Safe and compliant with standards - for all weather conditions.


Professionelle Bodenanalyse



Professional soil analysis

For the right foundation and maximum stability.


Langfristiger Support



Long-term support

Technical service - even after installation.



Comprehensive services for your solar project

From initial planning to final installation, we support you in every step to ensure that your project is implemented optimally.

Customized project planning
Every project is unique. With customized planning, we adapt the HelioRack 3V to meet your requirements.
Site investigation
We analyze the soil conditions to determine the best possible foundations for your solar system – ensuring a stable and long-lasting installation.
Structural calculations
Our experts conduct comprehensive structural calculations to ensure the safety and stability of your system under all environmental conditions.
