Ideal for large scale projects, flexible and fast-to-install

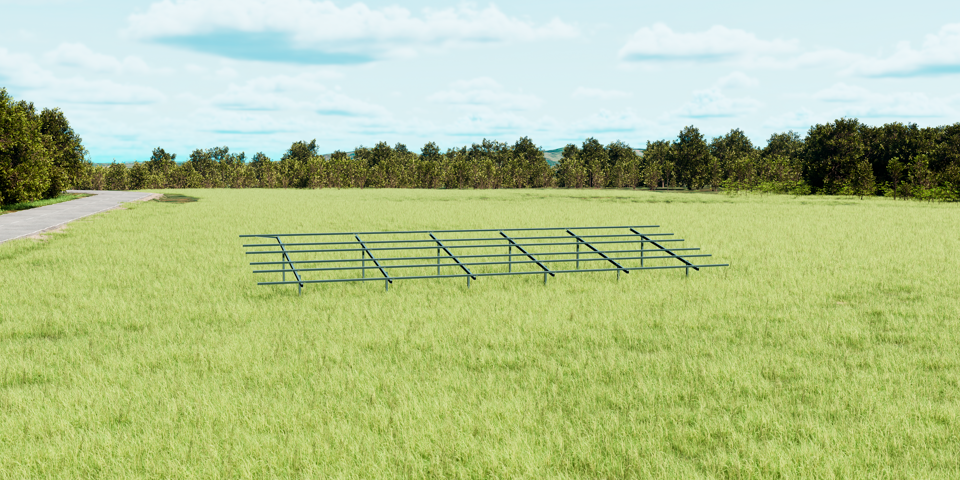

South-facing

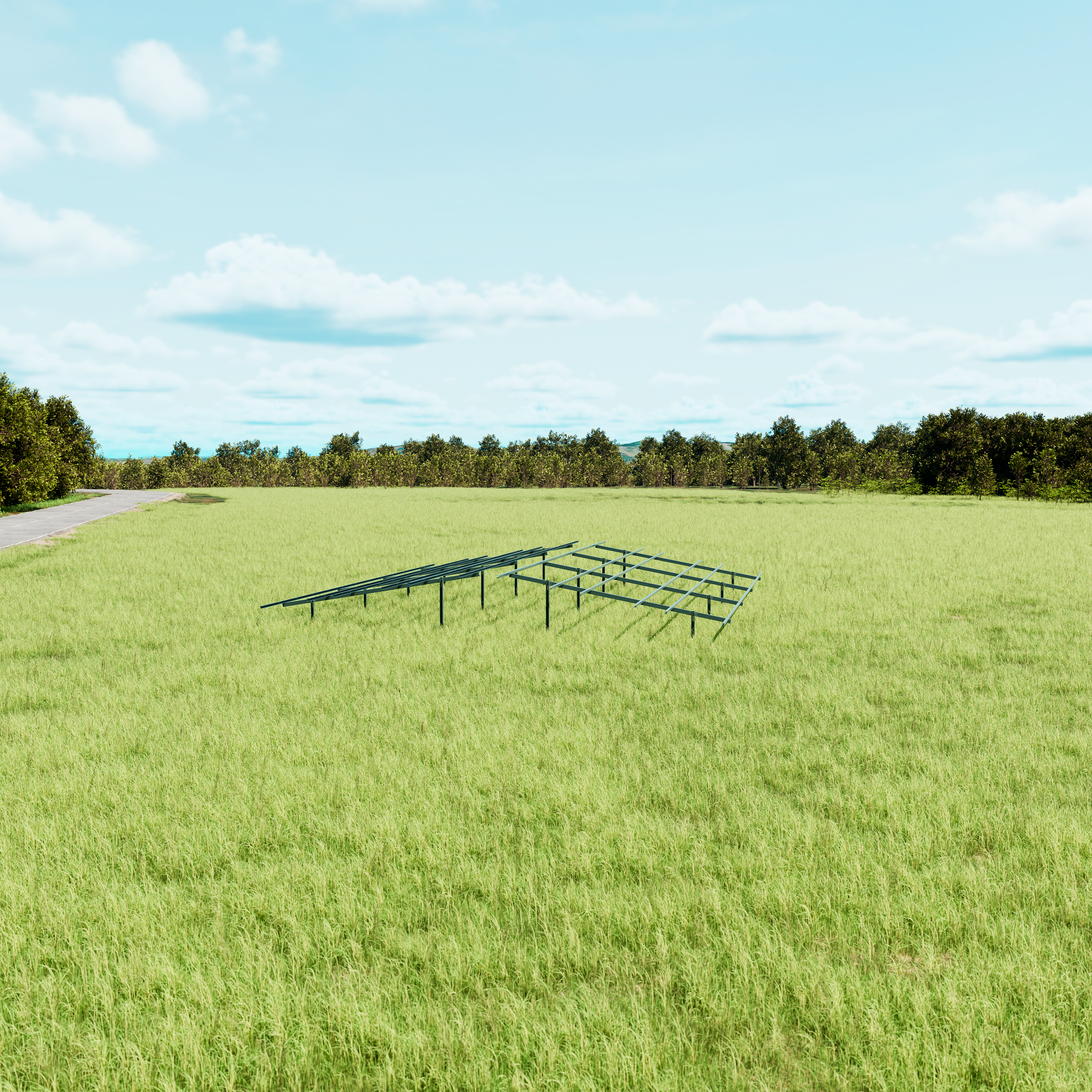

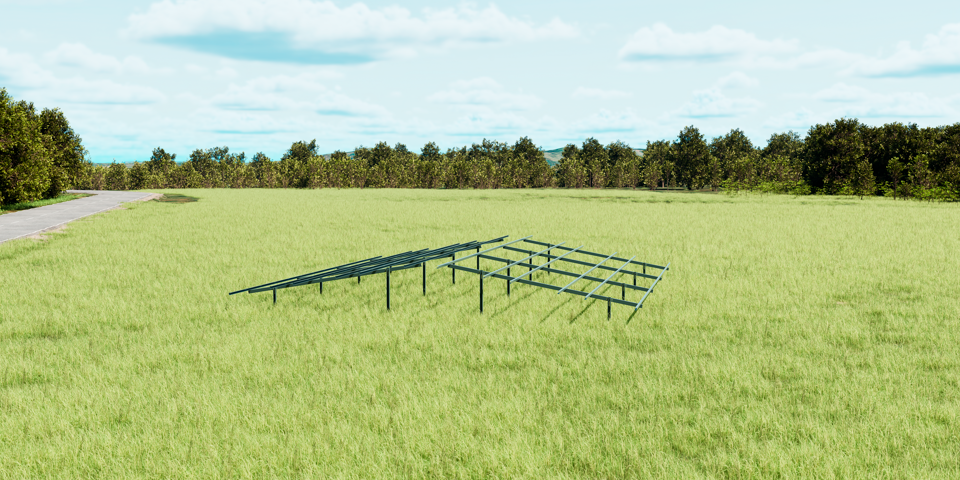

East-west-orientation
Product details
|
|
|
|
| South-facing | East-West | |
| Angle of inclination | 10-30° Degree | 10-20° Degree |
| Module type | All types on request | |
| Modular assembly standard | Direct screw connection, clamps possible | |
| Table length | 30-35 m, more on request | |
| Terrain length | N-S: 20°, E-W: up to 20°, other angles on request | |
| Foundation |
Ramming post, concrete, ground screw, Root systems for very soft soils
|
Ramming post, concrete, ground screw, Root systems for very soft soils
|
| Materials | Superstructure: S550 with ZM310 Ramming posts: S350GD with ZM430 to ZM1200 |
|
| Guarantee | 10 years, further terms on request | |
| Bolt material | Modules: A2-A4 Structure: 8.8 HDG tightenable with impact wrench wrench |
|
We accompany you from the initial planning to the final installation
 |
Individual project planning Tailor-made solutions for everyterrain and every need.
|
 |
Static calculations Safe and compliant with standards - for all weather conditions.
|
 |
Professional soil analysis For the right foundation and maximum stability.
|
 |
Long-term support Technical service - even after installation.
|
Comprehensive services for your solar project
From initial planning to final installation, we support you in every step to ensure that your project is implemented optimally.
