Ideal for efficient use of agricultural land

Details

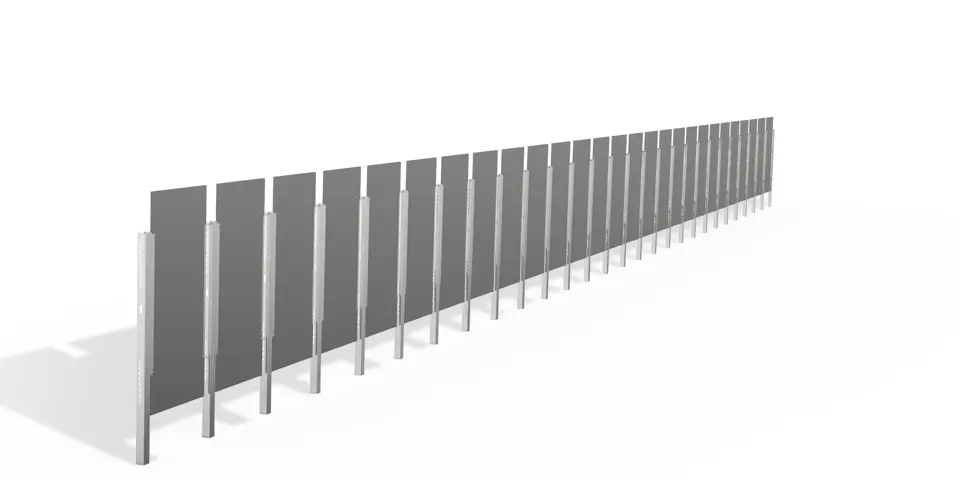

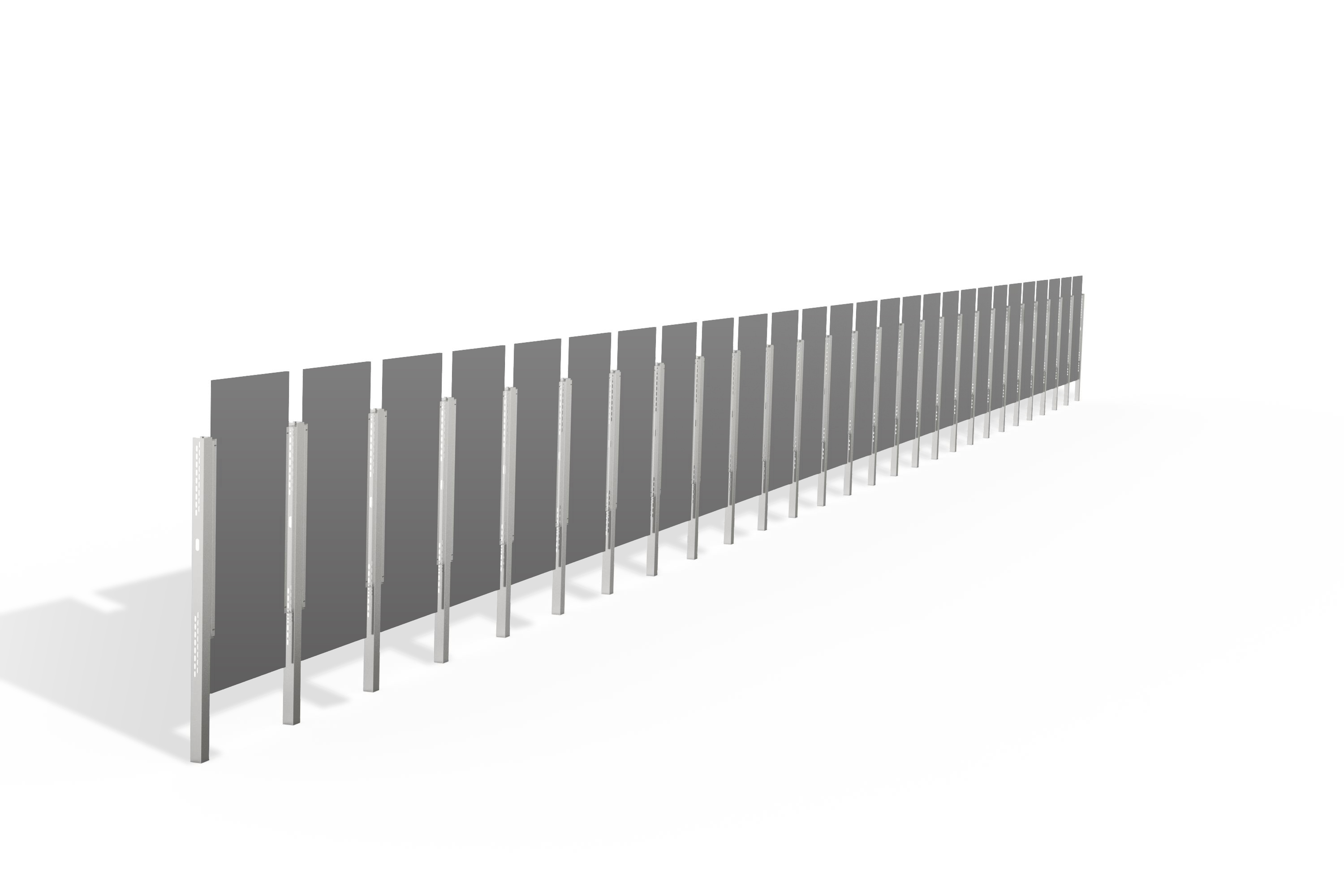

Details with modules

Inclination	Vertical
Module type	All types with frame can be installed
Modular Mounting	Direct screwing
Table length	30-35 m, more on request
Terrain Slope	E-W: up to 20°, other angles on request
Foundation	Ramming, Concrete, Earth Screw, Roots
Materials	Connectors: S390GD with ZM310 - Ramming Posts: S350GD with ZM430 up to ZM1200
Guarantee	Standard: 20 Years, Other periods by arrangement

	Individual project planning Tailor-made solutions for everyterrain and every need.
	Static calculations Safe and compliant with standards - for all weather conditions.
	Professional soil analysis For the right foundation and maximum stability.
	Long-term support Technical service - even after installation.

Comprehensive services for your solar project

From initial planning to final installation, we support you in every step to ensure that your project is implemented optimally.

Customized project planning

Every project is unique. With customized planning, we adapt the HelioRack 3V to meet your requirements.

Site investigation

We analyze the soil conditions to determine the best possible foundations for your solar system – ensuring a stable and long-lasting installation.

Structural calculations

Our experts conduct comprehensive structural calculations to ensure the safety and stability of your system under all environmental conditions.

Reach out to discuss how we can help you realize your vision.
